Building a Broadcast FM Receiver with RTL-SDR

Introduction

Building an FM receiver is often considered the "Hello World" of Software Defined Radio (SDR). While modern chips do this automatically, using GNU Radio Companion (GRC) allows us to see inside the process. This tutorial explains how we take a high-frequency radio wave and transform it into audible sound using Digital Signal Processing (DSP).

1. Prerequisites Hardware and Code

• RTL-SDR Dongle: Any RTL2832U-based device.
• Antenna: A simple dipole or telescopic antenna. For the FM band (88-108 MHz), the ideal length for a quarter-wave whip is roughly 75 cm.
• Software: GNU Radio 3.10 with the gr-osmosdr blockset installed.
• GRC Flowgraph: can be downloaded here [rtlsdr_fmrx.grc]

2. The Full Flowgraph

Below is the complete architecture of the receiver. Every block represents a mathematical operation performed on the signal in real-time.

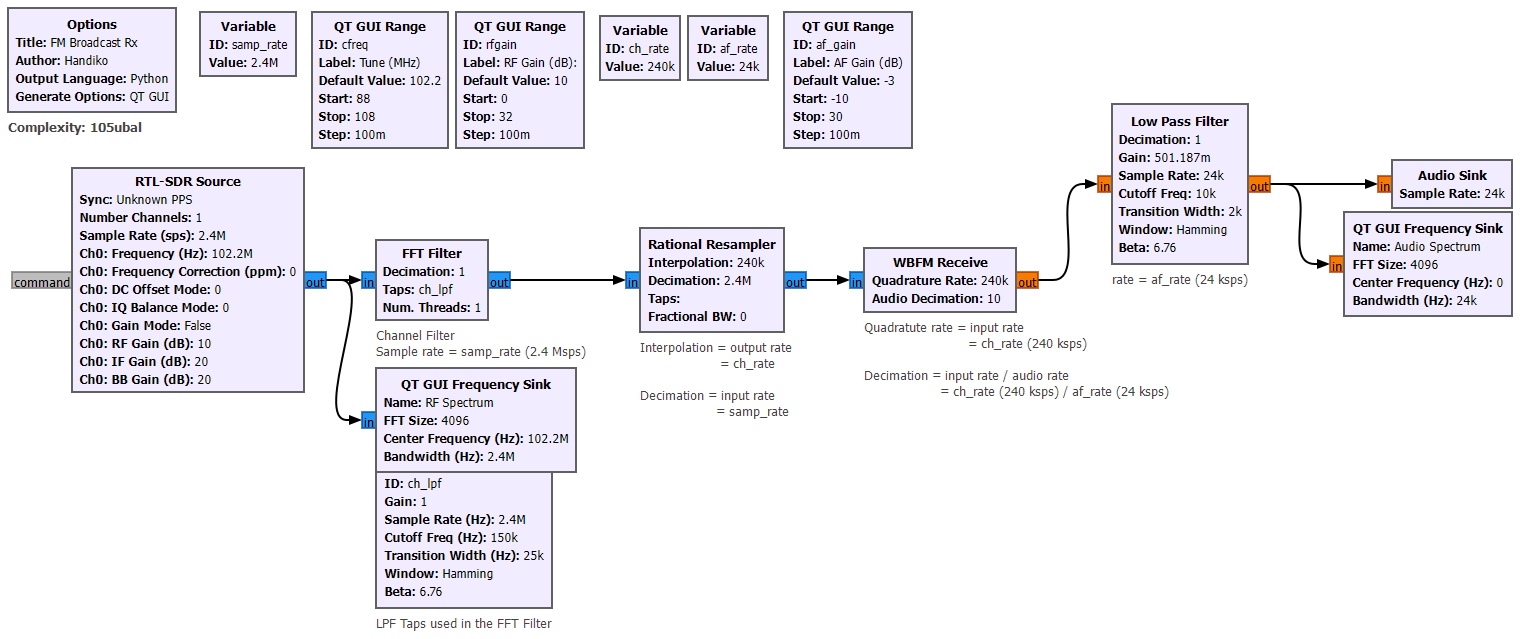

Figure 1: The complete GRC Flowgraph.

3. Step-by-Step Breakdown

Step A: Signal Acquisition (The RTL-SDR Source)

The process starts at the RTL-SDR Source block.

• Sample Rate: Set to 2.4 Msps ( 2 , 400 , 000 samples per second).
• Why? The RTL-SDR is most stable at this rate. It gives us a 2.4 MHz "window" into the RF spectrum, allowing us to see multiple stations at once.
• Tuning: We use a QT GUI Range variable to slide our center frequency.

Visualizing the Raw Data: Before we do anything else, we look at the raw input. This image shows the full 2.4 MHz bandwidth. The "peaks" you see are various local radio stations.

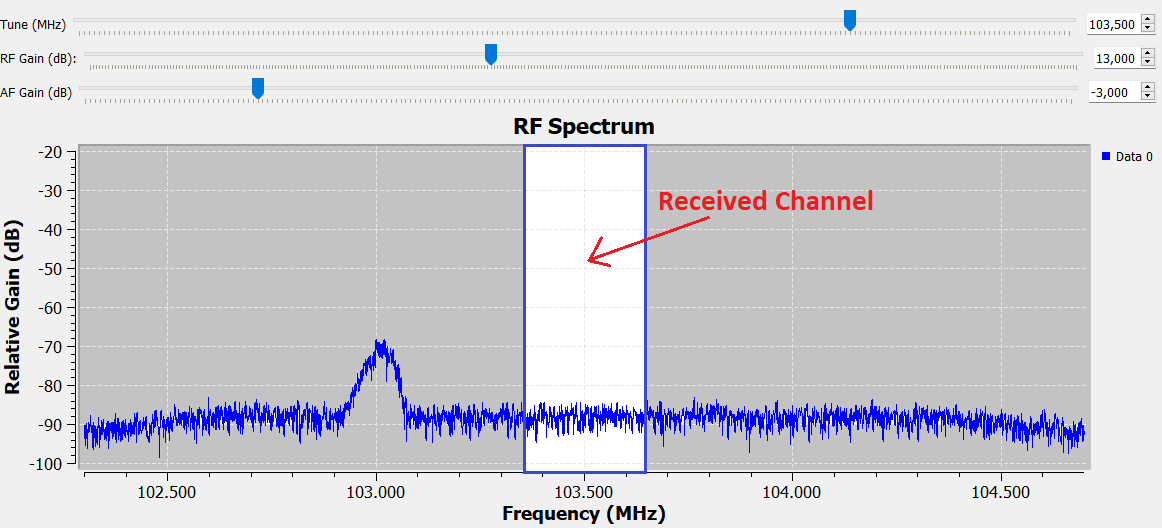

Figure 2: Visualizing the raw 2.4 MHz wide spectrum. Each peak is a station.

Step B: Tuning and Channel Selection

When we "tune" to a station, we are essentially shifting the entire spectrum so that our desired station sits at the 0 Hz (Baseband) center point.

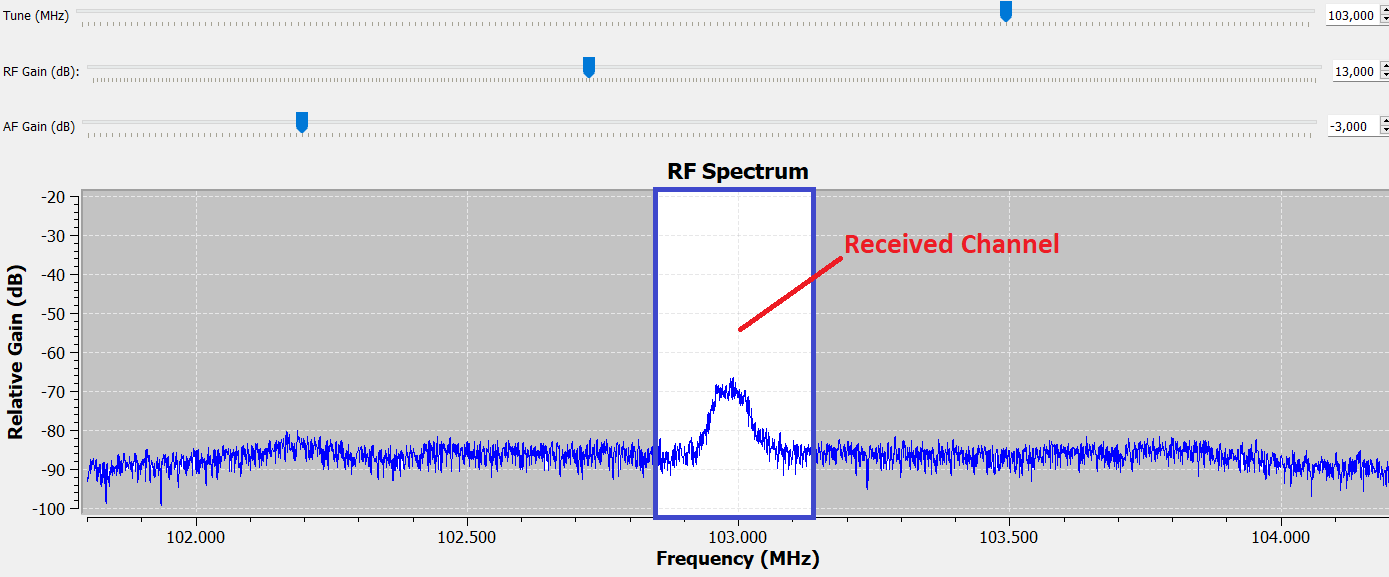

Figure 3: Centering the desired station at 0 Hz.

To isolate that station, we use an FFT Filter (Low Pass Filter):

• Cutoff: 120 kHz
• Transition Width: 25 kHz

FM stations are technically 200 kHz wide. We use a slightly wider filter ( 240 kHz ) to ensure we don't "clip" the edges of the music (which causes distortion), while still blocking the neighboring stations.

The result after filtering:

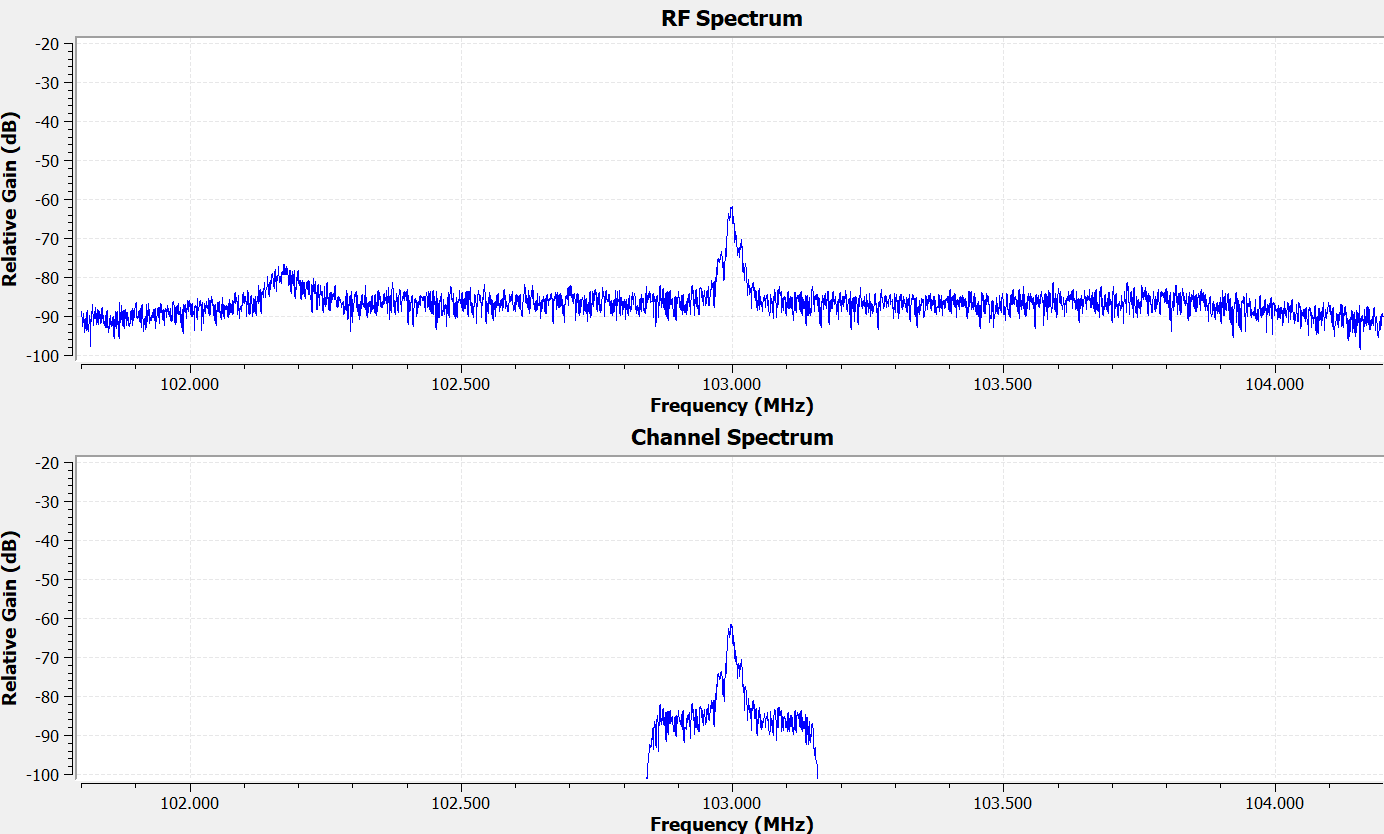

Figure 4: The isolated station after filtering.

Step C: Efficiency via Decimation (Rational Resampler)

Our computer doesn't need to process 2.4 million samples per second just to play audio that only requires 24 , 000 samples per second. Keeping the rate high would waste CPU power and potentially cause audio stuttering.

We use the Rational Resampler to Decimate the signal by a factor of 10.

• Input Rate: 2.4 MHz
• Decimation: 10
• New Rate (ch_rate): 240 kHz

As you can see below, the signal looks the same, but the "X-axis" (the sample rate) has been scaled down significantly.

Figure 5: The isolated station after filtering and decimation.

Step D: Demodulation (WBFM Receive)

Up until this point, the data is still Complex IQ data (Radio waves). The WBFM Receive block performs the mathematical magic of "Quadrature Demodulation." It looks at the change in frequency over time and converts that into a change in voltage (Audio).

• Audio Decimation: We decimate by another factor of 10 here.
• Final Audio Rate: 24 kHz (A standard rate that most soundcards can handle easily).

Step E: Final Polish & Output

Even after demodulation, there is often high-frequency "hiss" or static. We add a final Low Pass Filter with a cutoff of 10 kHz to clean up the audio.

• AF Gain: A simple multiplier that acts as your volume knob.
• Audio Sink: This block sends the samples to your speakers.

4. How to Run

1. Plug in your RTL-SDR.
2. Open rtlsdr_fmrx.grc in GNU Radio Companion.
3. Click the Play icon (or press F6).
4. Use the Tune slider to find a station.
5. Adjust RF Gain if the signal is weak, and AF Gain for volume.

5. Pro-Tips for Better Reception

• The Antenna Matters: A simple "rabbit ear" antenna works best if extended to about 75 cm (the quarter-wavelength for the FM band).
• Gain Staging: If you see the "peaks" in your FFT sink hitting the very top of the graph and flattening out, your RF Gain is too high (clipping). Turn it down until the signal looks clean.
